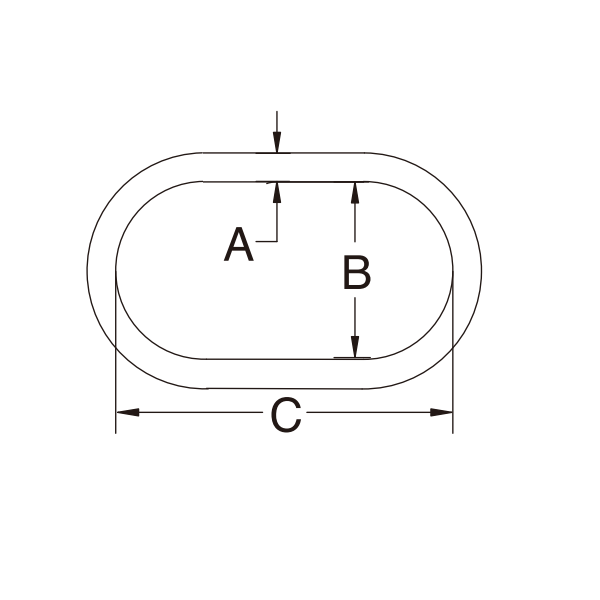

| Part No. | A | B | C | WT (LBS) | WLL (LBS) |
|---|---|---|---|---|---|
| T6ML-38 | 3/8” | 2” | 3-1/2” | 0..35 | 1,500 |
| T6ML-12 | 1/2" | 2-1/2” | 4-3/4” | 0.8 | 2,000 |
| T6ML-58 | 5/8” | 3” | 5-3/4” | 1.45 | 2,850 |
| T6ML-34 | 3/4" | 3-1/2” | 6-1/2” | 2.35 | 3,800 |
| T6ML-78 | 7/8” | 3-5/8” | 6-3/4” | 3.45 | 5,500 |
| T6ML-1 | 1” | 3/1/2002 | 7” | 4.4 | 7,800 |
| T6ML-114 | 1-1/4” | 4-1/4” | 9” | 9.25 | 11,500 |
| T6ML-112 | 1-1/2” | 5-1/4” | 10-3/8” | 15.5 | 54,300 |
