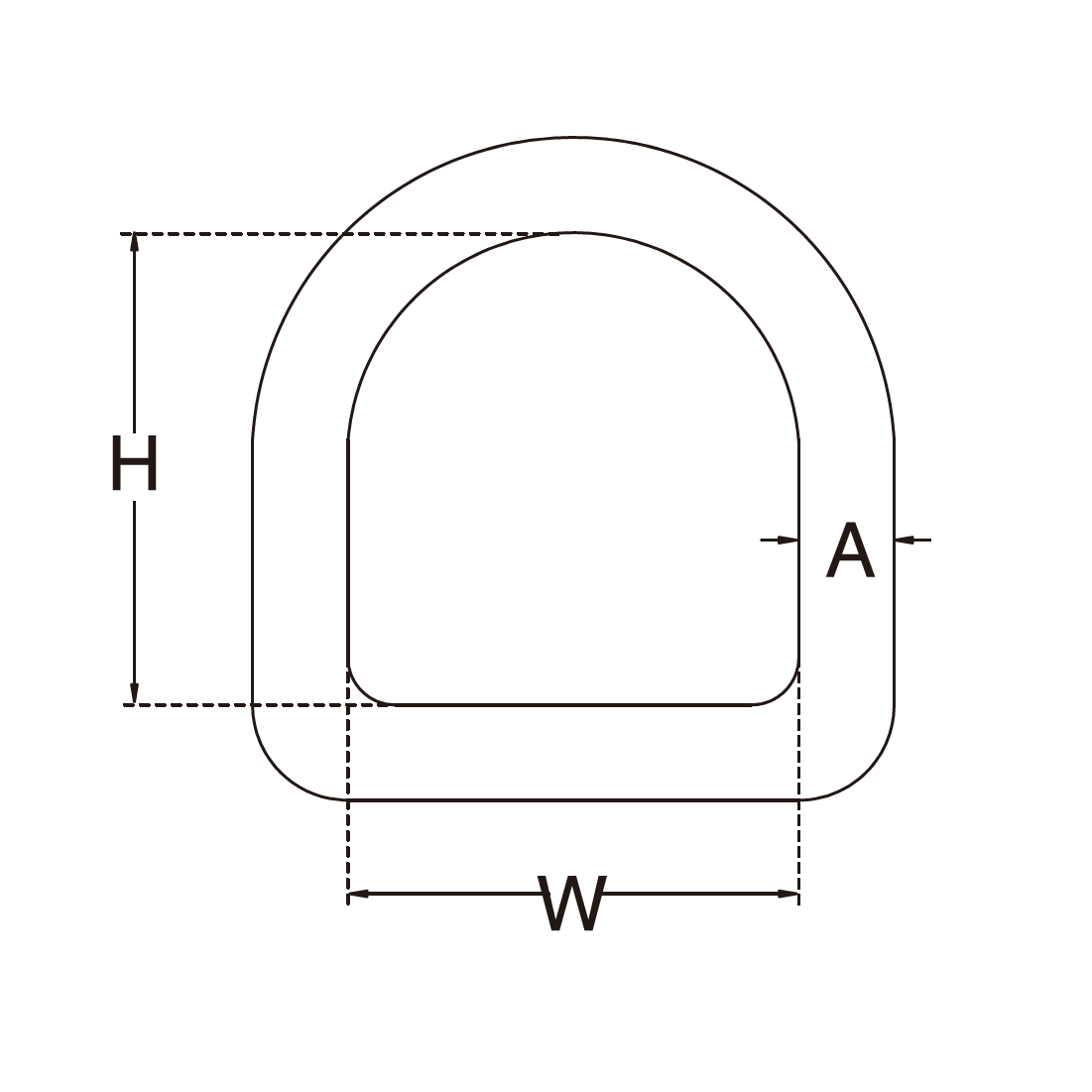

| ITEM | A | W (mm) | H (mm) | WLL (LBS) | WT (LBS) |
|---|---|---|---|---|---|
| T6DR3-15MM | 1/8” | 15 | 12 | 100 | 0.01 |
| T6DR3-30MM | 1/8” | 30 | 25 | 100 | 0.02 |
| T6DR5-30MM | 3/16” | 30 | 27 | 300 | 0.03 |
| T6DR5-40MM | 3/16’ | 40 | 32 | 300 | 0.04 |
| T6DR5-50MM | 3/16” | 50 | 45 | 300 | 0.05 |
| T6DR5-60MM | 3/16” | 60 | 60 | 300 | 0.07 |
| T6DR6-40MM | 1/4” | 40 | 35 | 500 | 0.07 |
| T6DR6-50MM | 1/4” | 50 | 48 | 500 | 0.08 |
| T6DR8-36MM | 5/16” | 36 | 36 | 800 | 0.11 |
| T6DR8-50MM | 5/16” | 50 | 40 | 800 | 0.14 |
| T6DR8-60MM | 5/16” | 60 | 50 | 800 | 0.18 |
| T6DR8-70MM | 5/16” | 70 | 58 | 800 | 0.23 |
