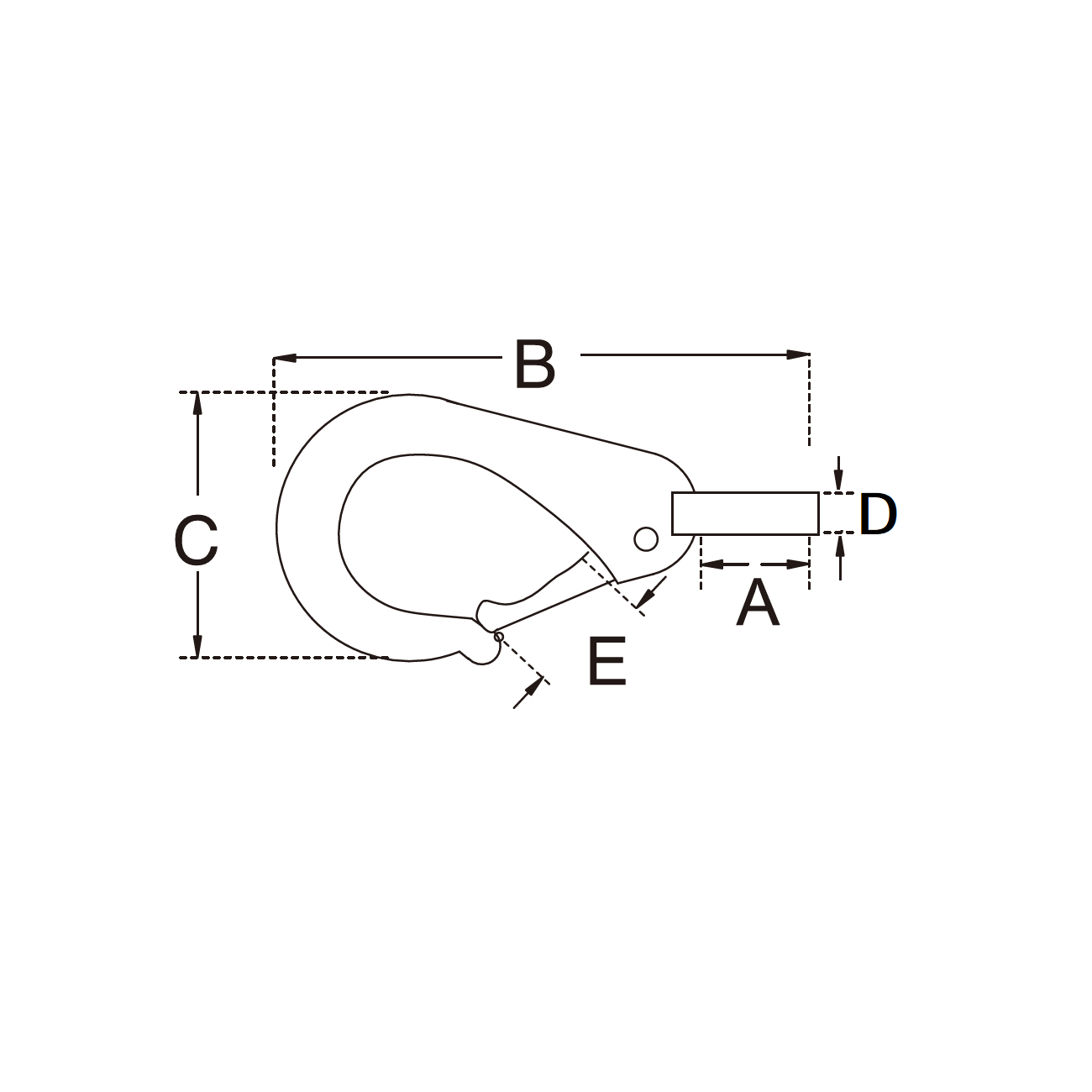

| ITEM | A | B | C | D | E | WLL (LBS) | WT (LBS) |
|---|---|---|---|---|---|---|---|
| T6FENP-10MM | 3/8” | 2-1/8” | 7/8” | 5/32” | 7/32” | 110 | 0.06 |
| T6FENP-16MM | 5/8” | 2-7/8” | 1-1/4”” | 3/16” | 7/16” | 220 | 0.1 |
| T6FENP-19MM | 3/4” | 3-3/16” | 1-5/16” | 7/32” | 15/32” | 330 | 0.12 |
| T6FENP-22MM | 7/8” | 3-13/16” | 1-1/2” | 1/4" | 1/2" | 550 | 0.19 |
