OVAL SLEEVES WITHOUT CHAMFER AISI316 - T6OVSLEEVES

from $0.71

Stainless Steel - T316 - Oval Sleeves

Please note: T6OVSLEEVES-316CS (0.88” length) - Use 5/32” Die when swaging to get proper after-swage dimension.

SIZE (A):

Quantity:

Stainless Steel - T316 - Oval Sleeves

Please note: T6OVSLEEVES-316CS (0.88” length) - Use 5/32” Die when swaging to get proper after-swage dimension.

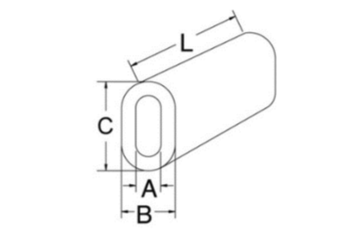

    Part No.
    A
    B
    C
    L
    WT (LBS)



    T6OVSLEEVES-364
    3/64”
    0.127”
    0.20”
    3/8”
    0.06/10pcs


    T6OVSLEEVES-116
    1/16”
    0.15”
    0.22”
    3/8”
    0.015/10pcs


    T6OVSLEEVES-332
    3/32”
    0.178”
    0.27”
    3/8”
    0.018/10pcs


    T6OVSLEEVES-18
    1/8”
    0.277”
    0.393”
    25/64”
    0.06/10pcs


    T6OVSLEEVES-532
    5/32”
    0.32”
    0.49”
    23/32”
    0.013


    T6OVSLEEVES-316
    3/16”
    0.35”
    0.55”
    1”
    0.031


    T6OVSLEEVES-316S
    3/16”
    0.34”
    0.55”
    7/8”
    0.02


    T6OVSLEEVES-732
    7/32”
    0.40”
    0.63”
    1-1/16”
    0.031


    T6OVSLEEVES-14
    1/4"
    0.464”
    0.73”
    1-1/8”
    0.04


    T6OVSLEEVES-516
    5/16”
    0.60”
    0.95”
    1-3/8”
    0.101


    T6OVSLEEVES-38
    3/8”
    0.80”
    1.13”
    1-13/32”
    0.159


    T6OVSLEEVES-12
    1/2"
    0.98”
    1.45”
    1-25/32”
    0.335


    T6OVSLEEVES-58
    5/8"
    1.25"
    1.82"
    2-7/16"
    0.70


    T6OVSLEEVES-34
    3/4"
    1.44"
    2.22"
    3-3/64"
    1.30
