OVAL SLEEVES WITH CHAMFER AISI316 - T6OVSLEEVES

from $0.71

Stainless Steel - T316 - Chamfered Oval Sleeves

Please note: T6OVSLEEVES-316CS (0.88” length) - Use 5/32” Die when swaging to get proper after-swage dimension.

SIZE (A):

Quantity:

Stainless Steel - T316 - Chamfered Oval Sleeves

Please note: T6OVSLEEVES-316CS (0.88” length) - Use 5/32” Die when swaging to get proper after-swage dimension.

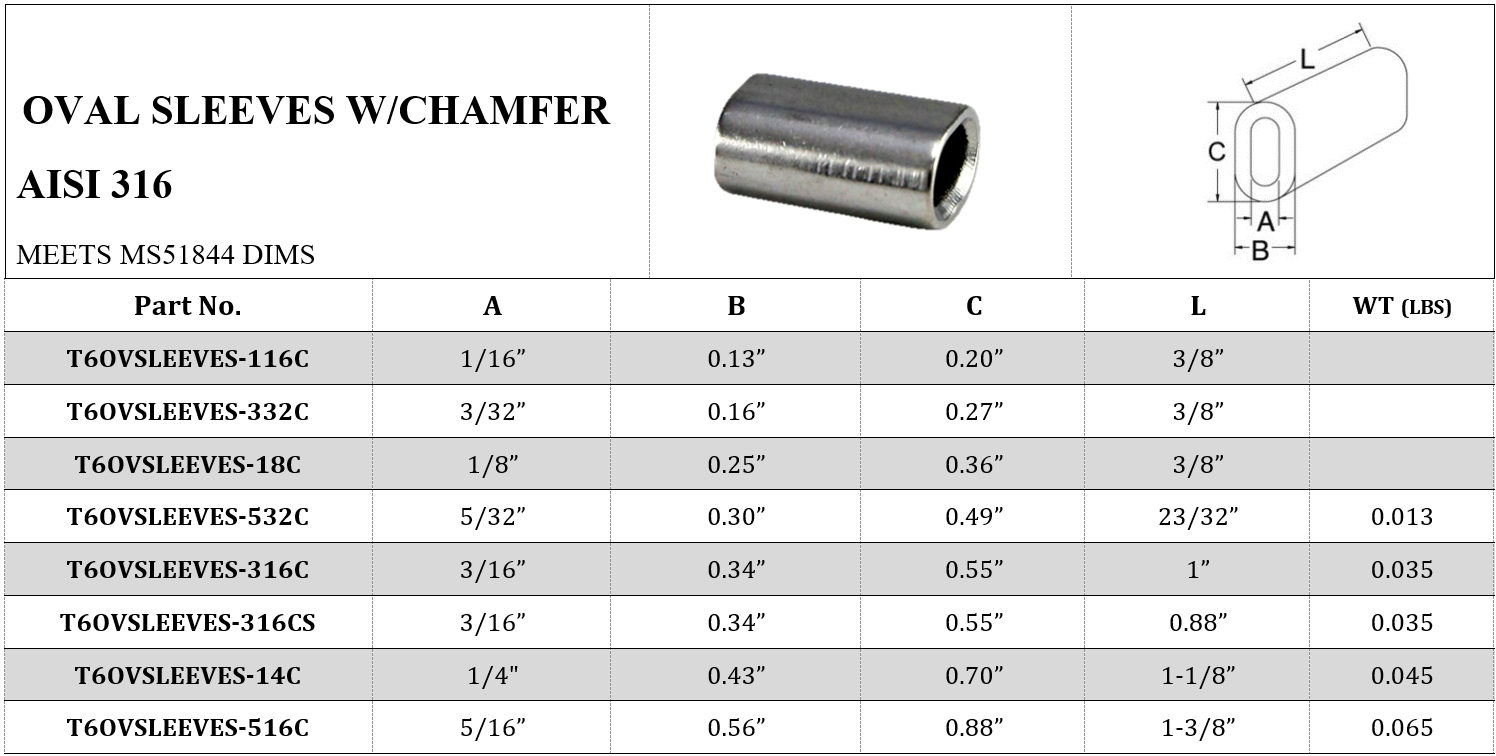

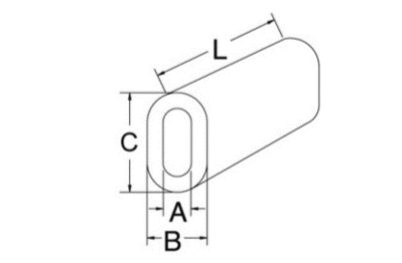

    Part No.
    A
    B
    C
    L
    WT (LBS)



    T6OVSLEEVES-116C
    1/16”
    0.13”
    0.20”
    3/8”
    0.015/10pcs


    T6OVSLEEVES-332C
    3/32”
    0.16”
    0.27”
    3/8”
    0.018/10pcs


    T6OVSLEEVES-18C
    1/8”
    0.277”
    0.393”
    23/64”
    0.06/10pcs


    T6OVSLEEVES-532C
    5/32”
    0.30”
    0.49”
    23/32”
    0.013


    T6OVSLEEVES-316C
    3/16”
    0.34”
    0.55”
    1”
    0.031


    T6OVSLEEVES-316CS
    3/16”
    0.34”
    0.55”
    0.88”
    0.031


    T6OVSLEEVES-14C
    1/4"
    0.43”
    0.70”
    1-1/8”
    0.04


    T6OVSLEEVES-516C
    5/16”
    0.56”
    0.88”
    1-3/8”
    0.101


OVAL SLEEVES WITH CHAMFER AISI316 - T6OVSLEEVES
