STAINLESS STEEL D SHACKLE SCREW PIN EUROPEAN TYPE FORGED AISI316 - T6DSH

from $1.40
SIZE (A):

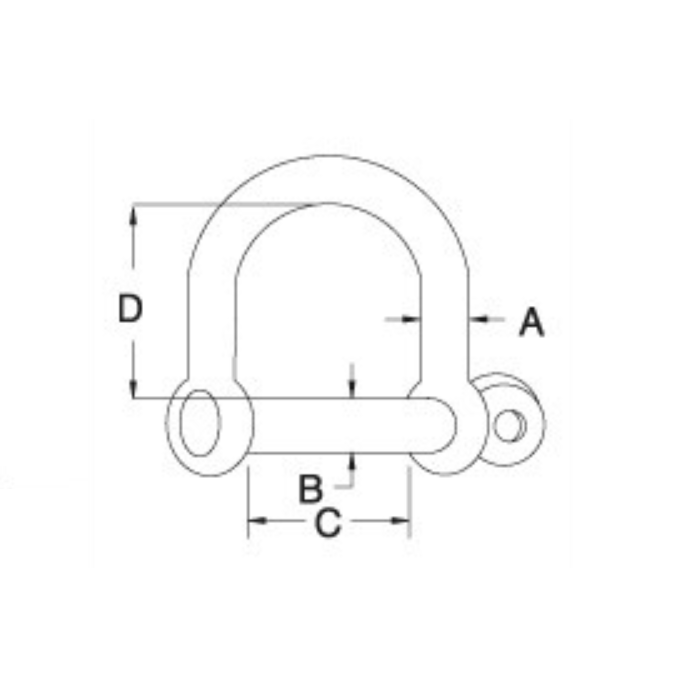

ITEM A B C D WLL (LBS) WT (LBS)
T6DSH-532 5/32” 5/32“ 11/32“ 5/8“ 350 0.02
T6DSH-316 3/16“ 3/16“ 13/32“ 11/16“ 520 0.04
T6DSH-14 1/4” 1/4“ 15/32“ 13/16“ 750 0.06
T6DSH-932 9/32“ 9/32“ 1/2“ 1“ 900 0.11
T6DSH-516 5/16” 5/16“ 5/8“ 1-7/32” 1,300 0.13
T6DSH-38 3/8” 3/8“ 3/4“ 1-3/8” 1,700 0.25
T6DSH-1532 15/32” 15/32” 1” 1-11/16” 2,850 0.56
T6DSH-12 1/2” 1/2“ 1“ 2” 2,850 0.6
T6DSH-58 5/8” 5/8“ 1-5/16” 2-3/8” 4,500 1
With CAPTIVE PIN
ITEM A B C D WLL (LBS) WT (LBS)
T6DSH-532C 5/32” 5/32” 11/32” 1/2” 350 0.02
T6DSH-316C 3/16” 3/16” 13/32” 11/16” 520 0.04
T6DSH-14C 1/4” 1/4” 15/32” 13/16” 750 0.06
T6DSH-516C 5/16” 5/16” 11/16” 1-9/32” 1,300 0.12
T6DSH-38C 3/8” 3/8” 3/4” 1-3/8” 1,700 0.25
T6DSH-1532C 15/32” 15/32” 1” 1-11/16” 2,850 0.56
T6DSH-12C 1/2" 1/2" 1” 1-5/16” 2,850 0.56
