STAINLESS STEEL LONG D SHACKLE SCREW PIN FORGED AISI316 - T6LDSH

from $1.82
SIZE (A):

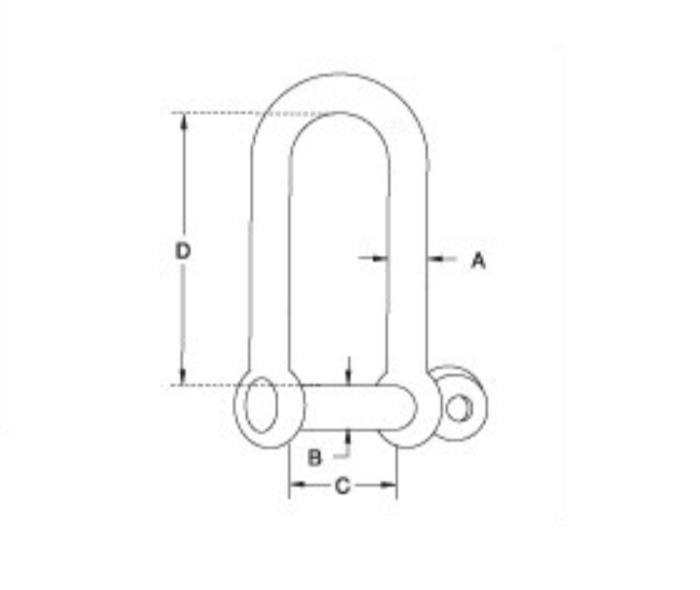

ITEM A B C D WLL (LBS) WT (LBS)
T6LDSH-532 5/32” 5/32” 5/16” 1-1/4” 350 0.02
T6LDSH-316 3/16” 3/16” 7/16” 1/1-2” 520 0.04
T6LDSH-14 1/4” 1/4” 15/32” 1-3/4” 750 0.08
T6LDSH-516 5/16” 5/16” 5/8” 2-3/8” 1,300 0.18
T6LDSH-38 3/8” 3/8” 3/4” 3” 1,700 0.36
T6LDSH-1532 15/32” 15/32” 1-1/16” 3-1/2” 2,850 0.56
With CAPTIVE PIN
T6LDSH-316C 3/16” 3/16” 7/16” 1/1-2” 520 0.04
T6LDSH-14C 1/4” 1/4” 15/32” 1-3/4” 750 0.08
T6LDSH-516C 5/16” 5/16” 9/16” 2-3/8” 1,300 0.18
T6LDSH-38C 3/8” 3/8” 3/4” 3” 1,700 0.36
T6LDSH-1532C 15/32” 15/32” 7/8” 3-1/2” 2,850 0.56
