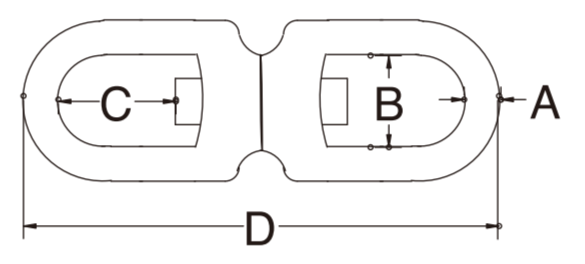

| Part No. |
A |
B |
C |
D |
WT (LBS) |
WLL (LBS) |
| T6EESW-532 |
5/32" |
15/32” |
3/8” |
1-27/64” |
0.04 |
150 |
| T6EESW-316 |
3/16” |
1/2" |
1/2" |
2-9/64” |
0.063 |
300 |
| T6EESW-14 |
1/4" |
9/16” |
9/16” |
2-9/16” |
0.13 |
600 |
| T6EESW-516 |
5/16” |
3/4" |
3/4" |
3-3/8” |
0.22” |
1,100 |
| T6EESW-38 |
3/8” |
15/16” |
1-3/32” |
4-3/8” |
0.44 |
1,500 |
| T6EESW-716 |
7/16” |
1” |
1-3/32” |
4-3/4” |
0.66 |
1,500 |
| T6EESW-1532 |
15/32" |
1” |
1-3/32” |
4-3/4” |
0.68 |
2,500 |
| T6EESW-58 |
5/8” |
1-1/2” |
1-11/16" |
7-3/16" |
2.05 |
4,600 |
| T6EESW-34 |
3/4" |
1-5/8” |
2” |
8-13/16” |
3.65 |
7,000 |
| T6EESW-78 |
7/8” |
2-1/4” |
1/31/1932 |
9-7/64” |
4.7 |
9,500 |
