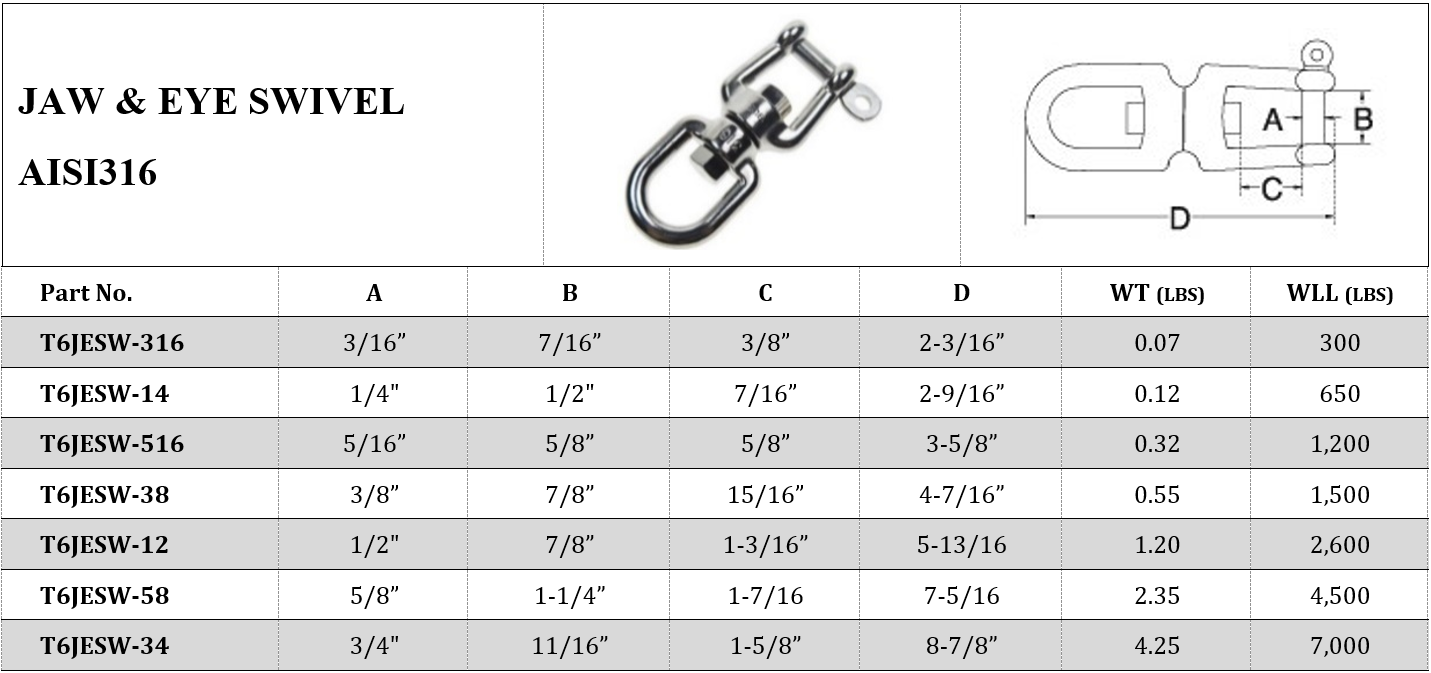

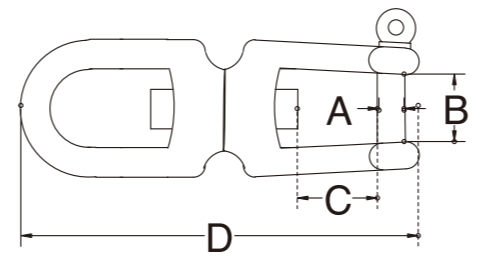

| Part No. | A | B | C | D | WT (LBS) | WLL (LBS) |
|---|---|---|---|---|---|---|
| T6JESW-316 | 3/16” | 7/16” | 3/8” | 2-3/16” | 0.07 | 300 |
| T6JESW-14 | 1/4" | 1/2" | 7/16” | 2-9/16” | 0.12 | 650 |
| T6JESW-516 | 5/16” | 5/8” | 5/8” | 3-5/8” | 0.32 | 1,200 |
| T6JESW-38 | 3/8” | 7/8” | 15/16” | 4-7/16” | 0.55 | 1,500 |
| T6JESW-1532 | 15/32" | 7/8” | 1-3/16” | 5-13/16" | 1.2 | 2,600 |
| T6JESW-58 | 5/8” | 1-1/4” | 1-7/16" | 7-5/16" | 2.35 | 4,500 |
| T6JESW-34 | 3/4" | 11/16” | 1-5/8” | 8-7/8” | 4.25 | 7,000 |
