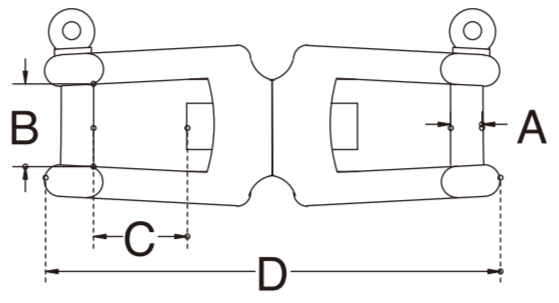

| Part No. | A | B | C | D | WT (LBS) | WLL (LBS) |
|---|---|---|---|---|---|---|
| T6JJSW-316 | 3/16” | 7/16” | 7/16” | 2-3/16” | 0.08 | 300 |
| T6JJSW-14 | 1/4” | 1/2" | ½” | 2-5/8” | 0.14 | 600 |
| T6JJSW-516 | 5/16” | 3/4” | 21/32” | 3-1/2” | 0.3 | 1,200 |
| T6JJSW-38 | 3/8” | 13/16” | 7/8” | 4-1/2” | 0.61 | 1,500 |
| T6JJSW-1532 | 15/32" | 61/64” | 1-1/8” | 5-11/16” | 1.18 | 2,600 |
| T6JJSW-58 | 5/8” | 1-1/4” | 1-3/8” | 7-3/8” | 2.6 | 4,500 |
| T6JJSW-34 | 3/4” | 1-1/2” | 1-5/8” | 8-5/8” | 4.3 | 7,000 |
