STAINLESS STEEL WELDED EYE BOLT UNC THREAD WITH DOUBLE WASHERS AND ONE NUT, AISI316 - T6PEB

from $1.82
SIZE:

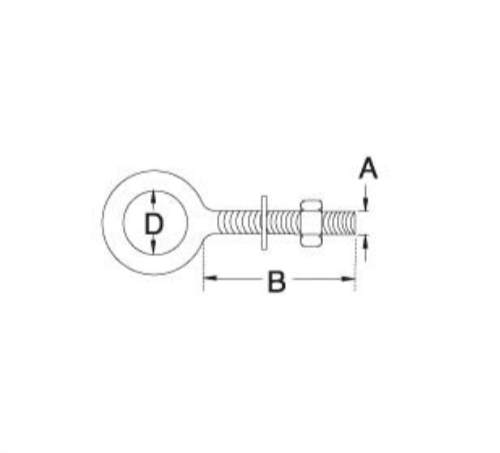

ITEM A B (THREAD) D WLL (LBS) WT (LBS)
T6PEB316-1FT 3/16” 1” 5/16” 150 0.02
T6PEB14-1916FT 1/4" 1-9/16” 1/2" 400 0.05
T6PEB14-238FT 1/4" 2-3/8” 1/2” 400 0.06
T6PEB14-3316FT 1/4" 3-3/16” 1/2" 400 0.07
T6PEB14-4FT 1/4“ 4” 1/2“ 400 0.08
T6PEB14-6FT 1/4” 6” 1/2” 400 0.1
T6PEB516-3316FT 5/16” 3-3/16” 5/8” 600 0.12
T6PEB516-4FT 5/16” 4” 5/8” 600 0.12
T6PEB38-4FT 3/8” 4” 3/4” 1,000 0.18
T6PEB38-6FT 3/8” 6” 3/4” 1,000 0.26
T6PEB12-4FT 1/2” 4” 15/16” 1,800 0.45
T6PEB12-6FT 1/2” 6” 15/16” 1,800 0.45
T6PEB58-6FT 5/8” 6” 1-5/16” 2,400 0.95
T6PEB58-12FT 5/8” 12” 1-5/16” 2,400 1.37
